SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

Name: SUS316L 2400pcsH Water Circulation Cosmetic Tube Filling Machine
Brand: GIENI
Price: 1 USD

China SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine factory

Brand Name : GIENI

Model Number : GNF

Certification : CE

Place of Origin : Shanghai

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1

Delivery Time : 45

Packaging Details : plywood case

Type : Cosmetic Tube Filling machine

Application : foundation cream, hand cream, concealer, eyecream,lipgloss,etc

Driven Type : Servo Driven, mechanical cem

Certificate : CE Approved, according to customer

Outer Dimension : 1890*1083*2172mm

Voltage : 3P/380V

Capacity : 40pcs/min

Automatic Grade : Automatic

Contact Now

1800-2400pcs/hour SUS316L Automatic Tube Filling and Sealing Machine with Water Circulation

description

Application for Automatic Tube filling and sealing machine:

This machine can automatically do the below job:

Auto tube load,eyemark detect,filling,tube heat,tube sealing,end cut,date coding andfinished product convey out.

Tube loading adopts pneumatic, reliable and precise.

Rotary type tube center control and positioning by choosing sensor detect.

Material contacts adopt SUS316L, clean, safe and meet GMP standard.

Safety-door device, machine stops when open the door. No tube no filling, overload protection.

Technical Parameter for Automatic Tube filling and sealing machine:

Filling Range: 5-250ml

Filling Precision:≤±1%

Production capacity:1800-2400pcs/hour

Tube Dia:∮10-50mm

Tube Length:60-210mm

Power:5KW

Dimension:1900×850×1900mm

Packing Size: 2000*1220*1915mm

Weight:850kg

Process for Automatic Tube filling and sealing machine:

Main Configuration for Automatic Tube filling and sealing machine:

Item	Name	Brand
1	PLC	Delta
2	Touch Screen	Weinveiw
3	Converter	Delta
4	Step Motor	SIhai
5	Eyemark detect sensor	Panasonic
6	Air Switch	CHNT
7	Code	Omron
8	Pneumatic Elements	SMC

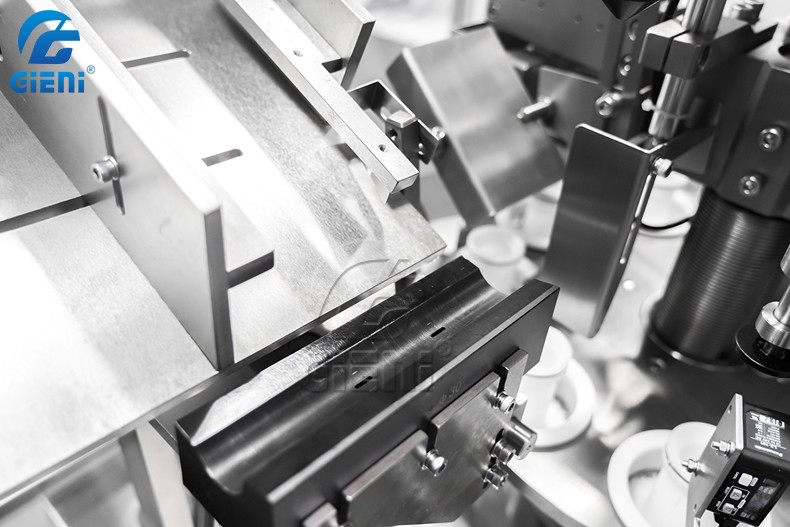

Rotary Design

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

Hot Air Heating

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine

End Product Push Out

SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
